BUG Modular Seating System

CE Gold TUV

Contact Us

Description

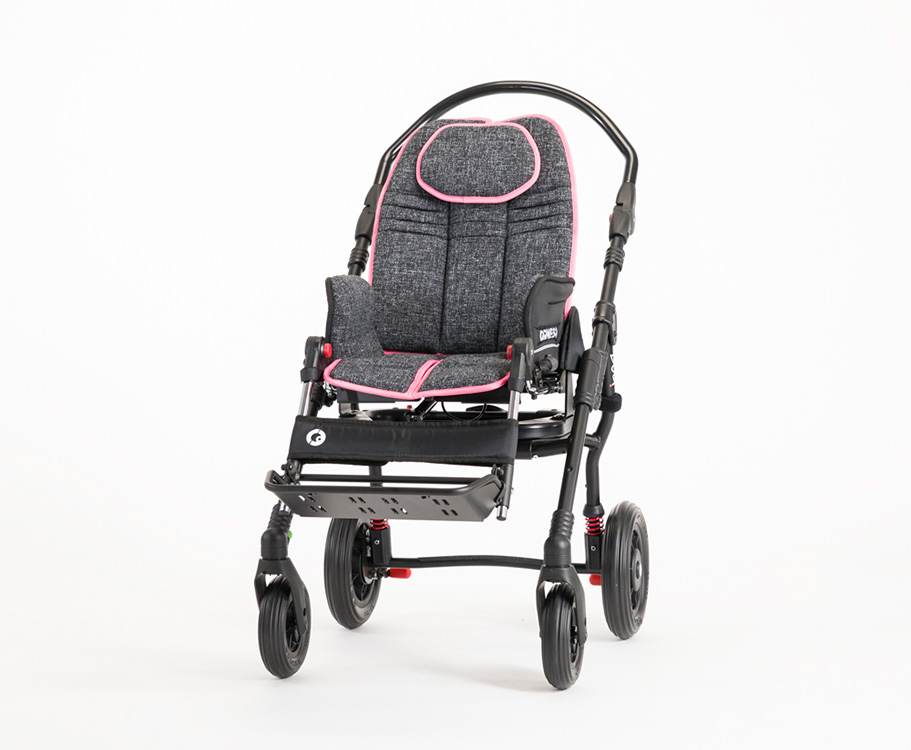

BUG Modular Seating System

Safe, modular & versatile

Bug by Ormesa is a stroller for children with special needs with a tilt-in-space function incorporated in the seat. This aid is highly engineered and versatile; the wide range of adjustments available, makes Bug a long-lived pushchair, able to accompany the child during the entire growth process.

Bug is available in two sizes: Small and Medium.

Bug cn be mount on four bases (one for outdoor use and three for indoor use), and on any flat surface. Its main features are easy to summarize:

  • ease of adjustment
  •  strength
  •  compactness and lightness



Quick and simple to adjust for optimum posture

The seating adjustment hinges are close to the user’s joints (coxo-femoral, knee & ankle joints).

This structural feature is a major contributing factor to the child’s well-being, as the posture is not changed during tilting and reclining operations.



Tilt in space and reclining

Tilting and reclining of the backrest make it possible to get the ideal support position.

They are regulated by two independent gas springs, this feature makes adjustment operations particularly gentle & smooth. At full recline, the chair assumes a nearly supine position.



Face to face with the child

The seat of Bug size Small with 869 base is reversible. It can be used in two directions: forward facing or facing you position (mother direction).

The forward direction will favor the visual exploration of the surrounding environment, the mother direction instead the visual contact between the child and the adult.



Headrest

Incorporated in the backrest. Your child’s head is always supported during the tilt adjustments of the seat or of the backrest, also without accessories.



Locking/unlocking system

On a flat surface that ensures a stable positioning well visible and extremely safe.

The release lever has a safety button to avoid the accidental release of the seat from the frame.



Push handle

Adjustable in tilt through red buttons. It helps the care-giver in handling it even when Bug is tilting and/or reclining. (Only for 869 four-wheel outdoor base Bug).



Backrest

Concave, rigid, reclinable and adjustable in height.



Tilting seat

With gas spring and adjustable in depth, width and rotation. The seat of Bug size Small with 869 base is reversible.



Tip-up foot rest

Adjustable in height and tilt for the foot flex-extension.



Leg rest

Adjustable in tilt, with hinges close



4 sizes in 2: wide range of adjustments

  • Lightweight and Manageable: compact, its weels do not protrude from the 4-wheel-base
  • Safe and simple to custom personalize: designed both for the mother and for the child
  • Cushion upholstered, breathable, ergonomic, fire retardant: removable and attachable to the seat with studs resistant to wear and washing

The ONLY ONE with tilt-in-space-system incorporated in the seat

Accessories

Set of 4 tie down hooks 891
Front handle 839
Suspension headrest attachment 934
Canopy 819
Mesh basket 858
Vent tray 911
Oxygen bottle holder 935
Vest harness 853
Five point vest harness 903
45° pelvic belt 894
4 point belt 920
Five point harness 906
Foot straps 827
Abduction block 834
Adjustable Abduction block 834R
Leg straps 817
Hand brake 905
Parasol 854
Sibling rear footboard 921
Trunk supports 868
Lateral supports 838
headrest 852
Ergonomic headrest 942
Adjustable headrest 863
Bottle holder 922
Rain cover 825
Thermal cover 818
Tray for indoor bases 824B
Transparent table 824

technical specifications

Dimensions 4 wheels base 869

small

medium

total width cm 57 cm 62
total length cm 67-81 cm 79-92
total height cm 101-111 cm 113-127
folded frame cm 28 x 81 cm 30 x 93
weight of the frame Kg 9,5 Kg 10,5
total weight (frame + seat) Kg 18 Kg 22
max load Kg 35 Kg 45

Dimensions indoor hi-low feeding base 856

small

medium

total width cm 56 cm 62
total length cm 79 cm 83
Height from seat to floor min-max cm 35-61 cm 35-61
weight of the frame Kg 14,5 Kg 15,5
total weight (frame + seat) Kg 23 Kg 27
max load Kg 35 Kg 45

Dimensions indoor hi-low compact base 851

small

medium

total width cm 50 cm 55
total length cm 72 cm 76
Height from seat to floor min-max cm 23-39 cm 23-39
weight of the frame Kg 8,8 Kg 10
total weight (frame + seat) Kg 17,3 Kg 21,5
max load Kg 35 Kg 45

Dimensions indoor compact floor base 850

small

medium

total width cm 46 cm 51
total length cm 61 cm 63
Height from seat to floor min-max cm 6 cm 6
weight of the frame Kg 4,5 Kg 5,4
total weight (frame + seat) Kg 13 Kg 16,9
max load Kg 35 Kg 45
