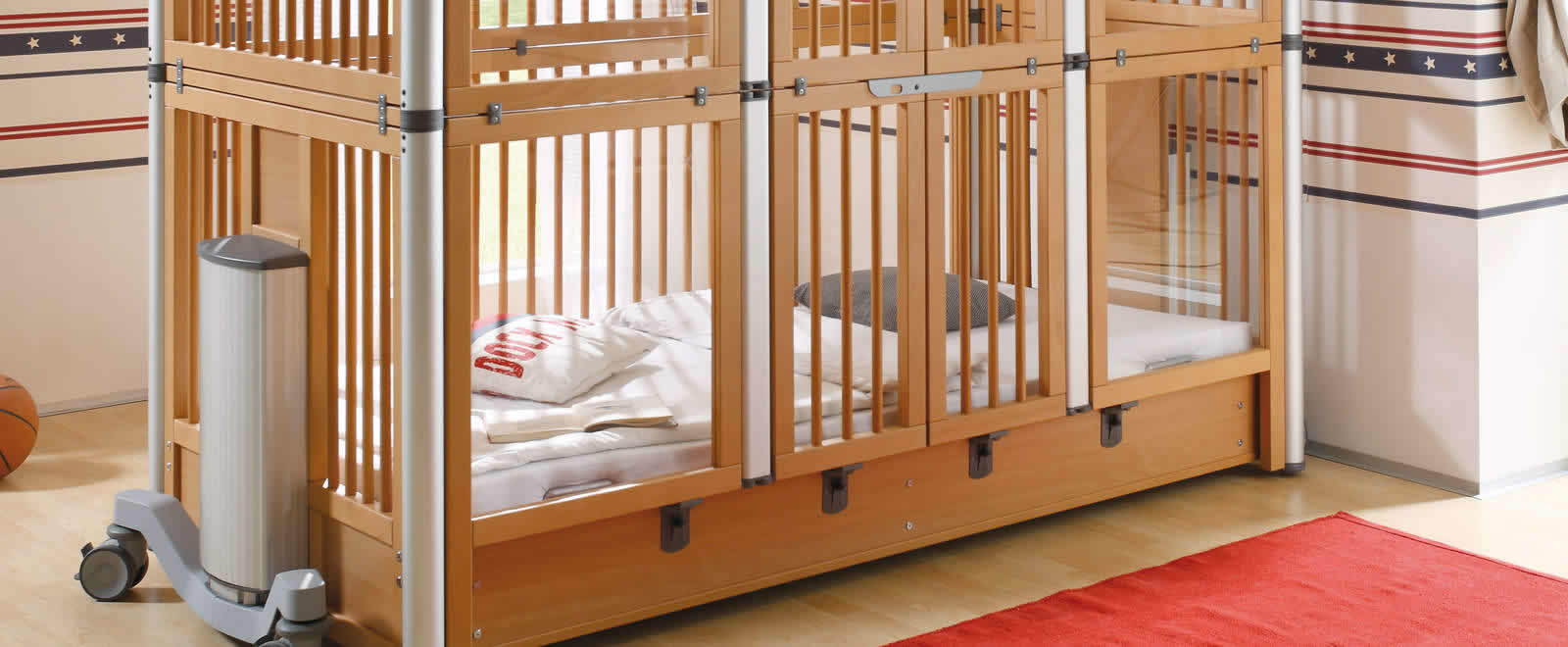

The innovative dino adolescent care bed from Hermann Bock offers the best possible support and safety in everyday adolescent nursing care.

The bed that grows with you

The dino modular nursing care bed can be expanded and tailored to the requirements of young people. The side rail height can be increased from 74 cm to 109 cm using snap-on modules. Side rail height can even be increased to 144 cm by fitting two modules on top of one another.

Young patients can receive optimal care either from the comfort of their own home or at rehabilitation centres. The robust and home-like bed offers high standards of safety, plus complete freedom thanks to folding doors and a low-level lying position.

Additional padding can be added to the dino as and when required. The comfortable padding elements have a transparent window in the head area, offering the highest level of safety.

Advantages at a glance

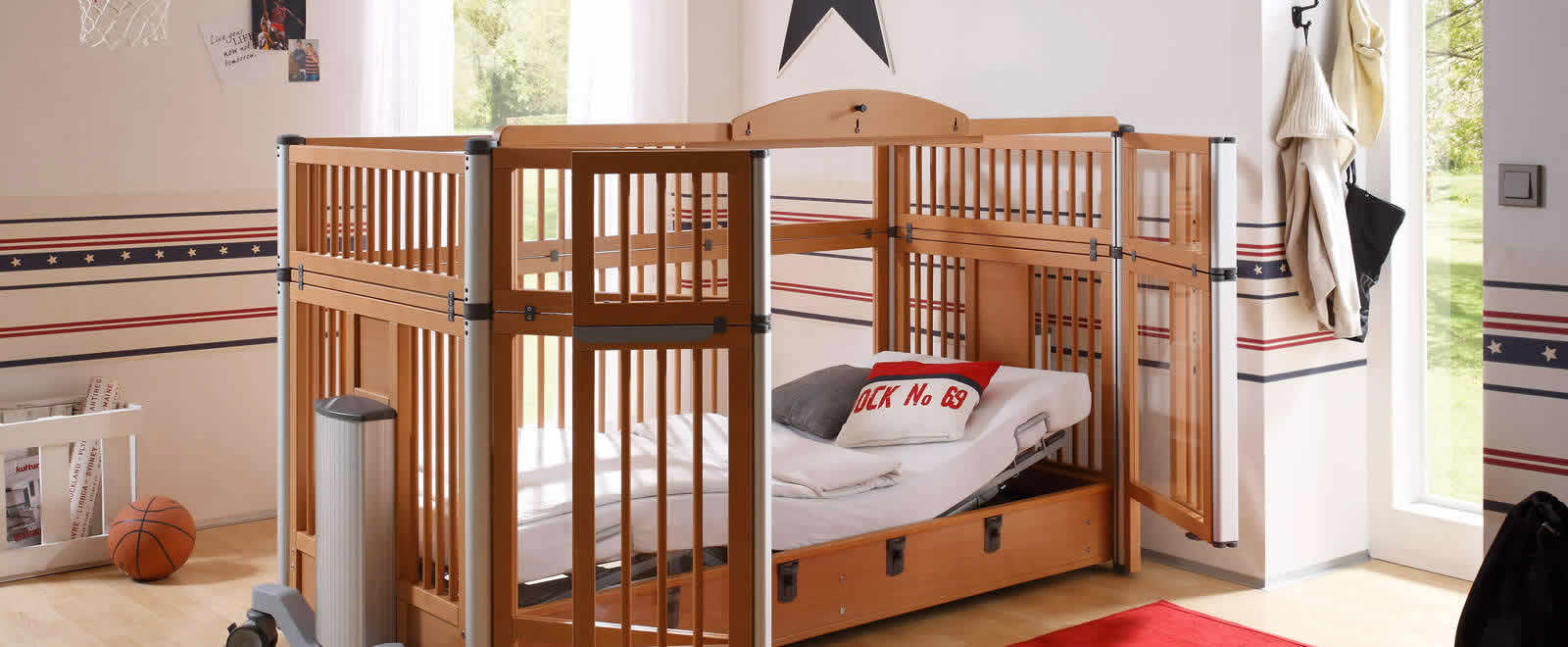

• Freedom and accessibility thanks to folding doors across the front
• Equipped for adolescents and young adults, but with the functional features of an adult nursing care bed
• Safety and a homely atmosphere view thanks to timber braces and acrylic glass at the head and foot end of the bed
• Comfort and flexibility

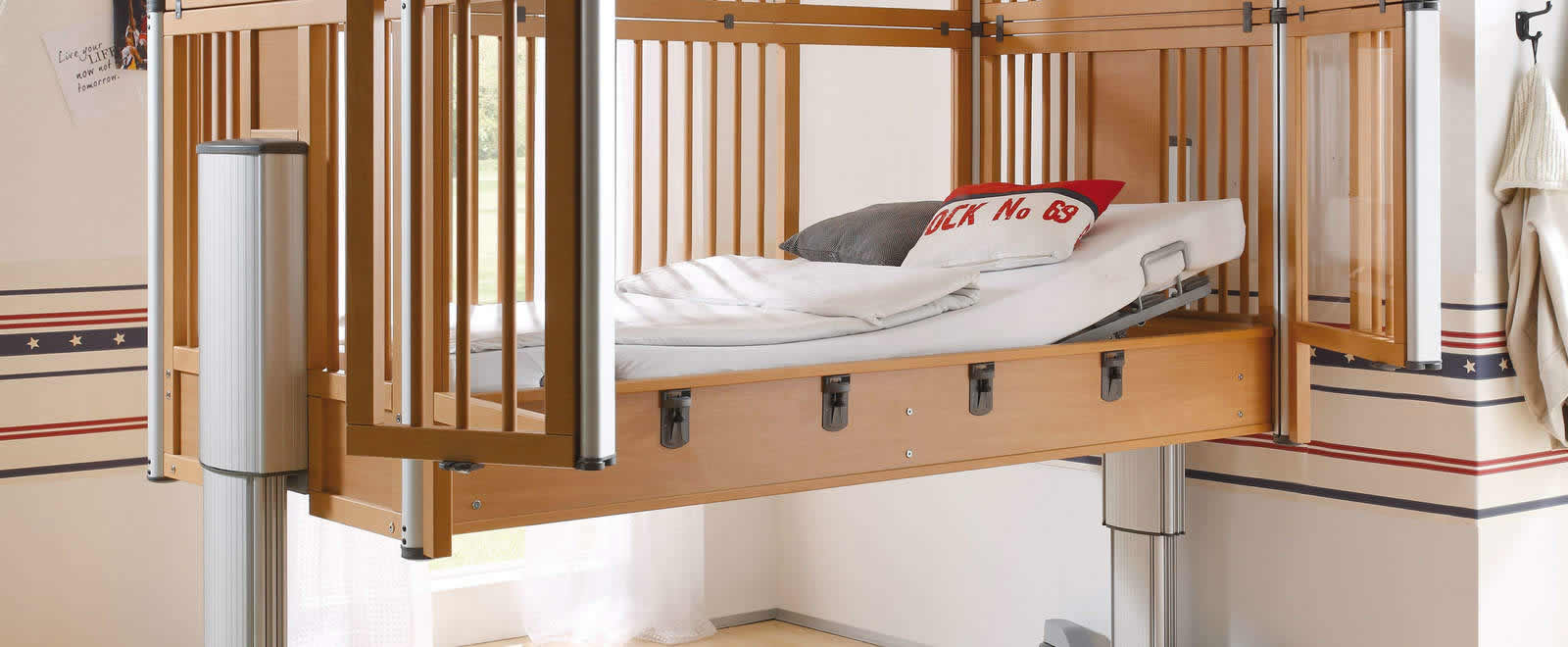

• Lowering almost to floor level (16 cm) and individual care heights of up to 86 cm thanks to innovative lifting columns
• Modular side rails

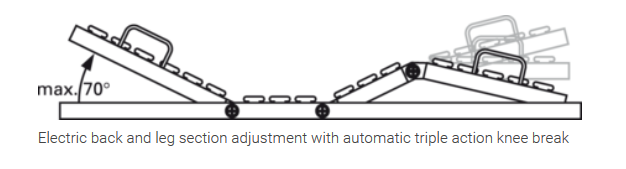

• Ergonomic, electrically adjustable lying surface
• Designed in accordance with standard in development prEN 50637

Basic equipment

• Mattress RG 40
• SMPS with extra-low voltage system
• Total height: 74 cm
• Folding doors on one side with timber braces and acrylic windows
• Electric height adjustment
• Removable aluminium slats
• Highly stable triple telescopic lifting column system
• Solid wood, beech, natural finish (clear varnished)
• Wood resistant to perspiration and saliva in accordance with DIN 71-3
• Safety stops at 22 cm and 34 cm

Safety guarantees

• Primary fuse in the mains plug
• Thermal fuse
• Locking function
• Hand control with single fault safety
• Special spiral mains cable
• Pull relief at power plug and anti-kink cable management
• Water resistance to IPX4
