Hydraulic Beta-Trac
XW002W_

Contact Us

Description

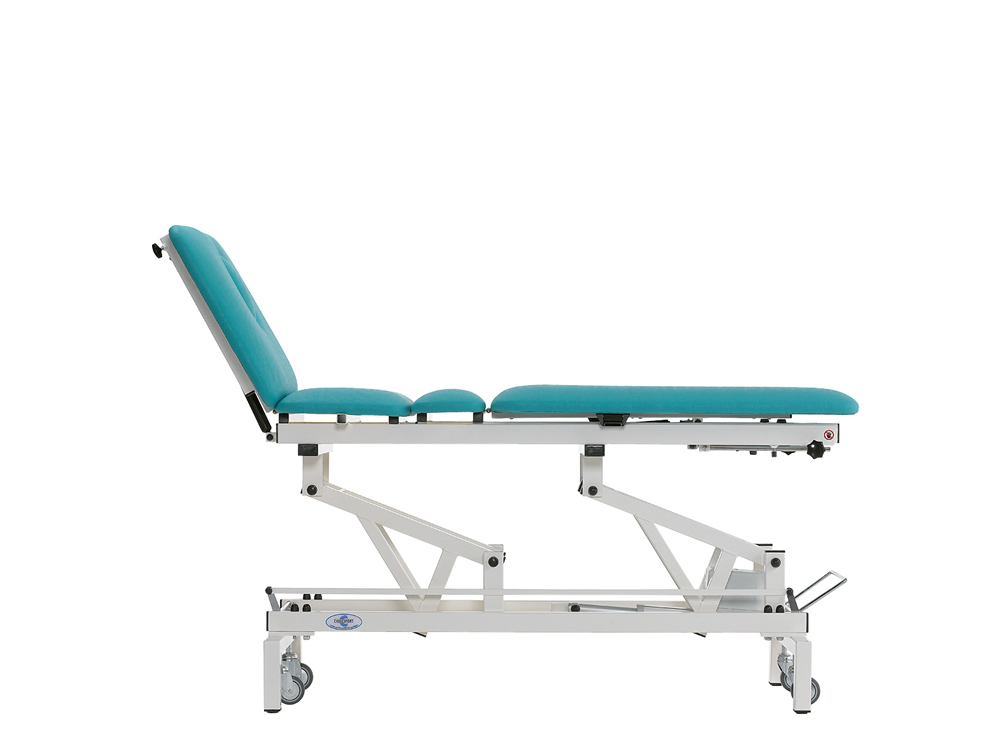

Examination, treatment and traction table with four sections, height adjustment system is hydraulic. Lumbar and cervical tractions can be applied.

The table is supplied with an additional removable support frame to be fitted to EUROTRAK traction unit code 09336. The head and leg sections can be easily adjusted via gas strut.

The breathing hole plug comes as standard. Tractions are performed using two chromed attachment elements to be fitted to the head section, two more padded supports to be used in the underarm area and a height-adjustable spreader bar to support the traction rope, all included. For lumbar tractions, there is a sliding section underneath that reduces rubbing between patient and couch surface. The table is also provided with straps in various sizes to perform tractions involving the cervical, pelvic and thoracic area, as well as with a few cushions so the patient can be comfortably positioned and a correct longitudinal traction of the spine is achieved. The table has four swiveling wheels with central locking system, and the base frame is height-adjustable thanks to four independent feet that allow for accommodating any unevenness in the floor.

ACCESSORI IN DOTAZIONE:

  • 1 medium thoracic strap
  • 1 large thoracic strap
  • 1 medium pelvic strap
  • 1 large pelvic strap
  • 1 chin strap
  • 1 cervical cushion
  • 1 lumbar cushion

Configurator

Padding Type
seamless rounded edges
W
UPHOLSTERY COLOUR
UPHOLSTERY COLOUR

Accessories

Traction Bag 0.5 Kg
08035
Synthetic leather traction bag, 0.5 kg.
Traction Bag 1 Kg
08045
Synthetic leather traction bag, 1 kg.
Traction Bag 2 Kg
08055
Synthetic leather traction bag, 2 kg.
Traction Bag 3 Kg
08065
Synthetic leather traction bag, 3 kg.
Traction Bag 4 Kg
08075
Synthetic leather traction bag, 4 kg.
Traction Bag 5 Kg
08085
Synthetic leather traction bag, 5 kg.
Chin Strap With Spreader Bar
09420
This support restrains the head while performing cervical traction exercises. It is reinforced and has velcro fastenings.
Set Of Bags Weights
AC0077
Set of n. 6 different weight bags with 35 mm diameter chromed attachment ring for the Archimedes Pulley Therapy System.
Eurotrak Touch
09337
Touchscreen equipment used to perform lumbar and cervical tractions. Tractions can be applied in a "static”, "dynamic” or "intermittent dynamic” mode. To be paired with ALFATRAC and BETATRAC therapy tables.
Pelvic Strap M
09350
Pelvic strap medium. Dimensions: 60 - 100 cm
Pelvic Strap L
09360
Pelvic strap large. Dimensions: 70 - 130 cm.
Thoracic Strap M
09370
Chest strap medium. Dimensions: 60 - 100 cm
Thoracic Strap L
09380
Chest strap large. Dimensions 70 - 130 cm.
Ankle Straps
09390
Pair of leather ankle straps.
Leather Chin Strap
09400
Leather chin strap with support.
Trapezoid Cushion
09430
Allows a comfortable and correct posture during the execution of the lumbar or cervical traction. Dimension 40 x 50 x 30 h cm.
Triangular Cushion
09440
Allows a comfortable and correct posture during the execution of the lumbar or cervical traction. Dimensions: 45 x 42 x 15 h cm.
Semi-Cylindrical Cushion
09450
Allows a comfortable and correct posture during the execution of the lumbar or cervical traction. Dimensions: 30 x 15 x 8 h cm.
Set Of Cushions
AC0078
Postural cushions made in foamed material, with synthetic leather upholstery. Used for patient positioning during tractions in a prone or supine position.
Set Of Straps
AC0079
Set of straps, are worn by the patient when performing lumbar or cervical tractions.

Technical Spec.

Height adjustment:
hydraulic
Height adjustment:
min. 46 - max. 96 cm
Head/leg section adjustment:
gas spring
Casters braking system:
central by foot pedal
Safe load:
175 kg
Table dimensions:
196 x 64 x 46 ÷ 96h cm
Classification:
93/42/EEC Class 1
