Infra Lamp 750
EL0157

Contact Us

Description

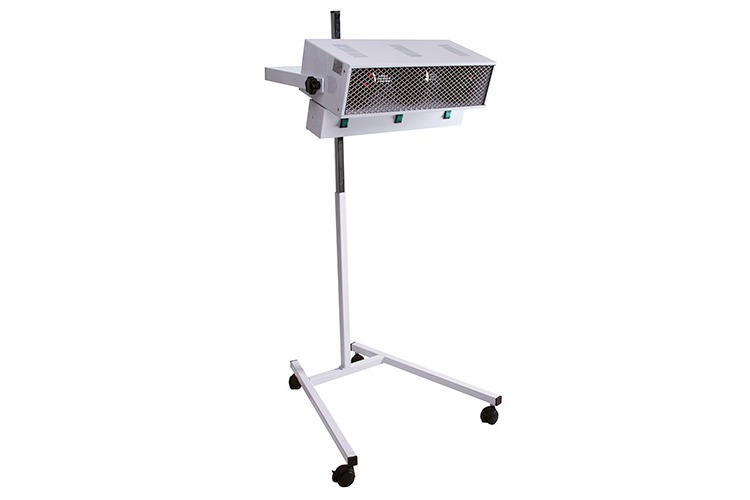

The device is equipped with 3 IR lamps of 250W 230V each one, placed on a base with wheels. It's possible to regulate the inclination of the lamps. This device can be programmed for a functionning until 15 minutes. When the programmed time is over, there is an automatic switching off. Each IR lamp has a switch for independent switching on/off.

Mechanical timer for treatments up to 15 minutes. Conforms to EC 93/42 Class II A and to Standard EN 60601-1  Class I Type B.

THERAPEUTIC INDICATIONS :

  • Use in orthopedic field : treatment of arthritis, lumbago, rheumatisms, sprains, and generally where a penetrating heat source is needed.
  • Use in physiotherapic field : massage preparation and body heating for a better absorbation of creams by the skin.
  • Heating : in cold rooms it's possible to obtain an immediate heating for the irradiate person.

Caution: This device can be used only under medical supervision or professional supervision.

Technical Spec.

Power supply:;230 V, 50/60 Hz;Rated power:;3 x 250 W;Lamp holder dimensions:;55 x 15 x 21 cm;Adjustable height:;from 82 to 152 cm;Weight:;14 kg;IP Protection:;IP 20;Directive CEE 93/42:;Class II A;Standard EN 60601 - 1:;Class I Type B;Infrared irradiation intensity of one single lamp - at 20 cm:;340 mW/cm²;Infrared irradiation intensity of one single lamp - at 30 cm:;170 mW/cm²;Infrared irradiation intensity of one single lamp - at 40 cm:;100 mW/cm²;Infrared irradiation intensity of one single lamp - at 50 cm:;70 mW/cm²
