Molift Duo

Contact Us

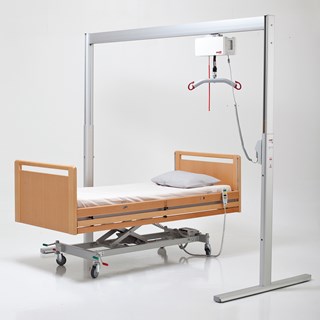

A flexible gantry system
With a Molift free standing unit, we offer a system that is easy to install without additional fixtures on ceiling or walls. It is ideally suited to temporary lift applications in hospitals, nursing homes or private homes.

Lightweight construction

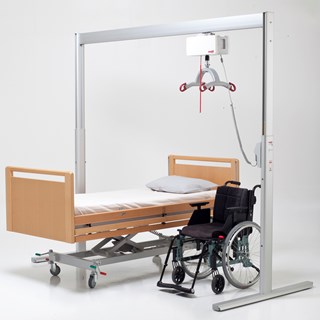

The Molift Rail System Duo has a lightweight aluminium construction and a functional design which makes the gantry system easy to install, dismantle and move elsewhere. In combination with Molift Air or Molift Nomad lift motor and a sling, Molift Rail System Duo solves all overhead lifting situations, whatever the environment. With a lifting capacity of 300 kg (660 Ibs), it is ideal for lifting and transferring a person from or to; bed, floor, chair, wheelchair, toilet etc.

Suitable for all bed and room sizes
This 2 post gantry system has a rail length between 200 cm (78,7") and 350 cm (137,8") and has 4 step adjustable height up to 255 cm (100,4"), making this free standing hoist unit suitable for all bed and room sizes.

Easy to install
Due to the lightweight system it is easy to install the gantry and move it to a new location.

Supreme stability
The gantry system has supreme stability and a functional design.

Adjustable height

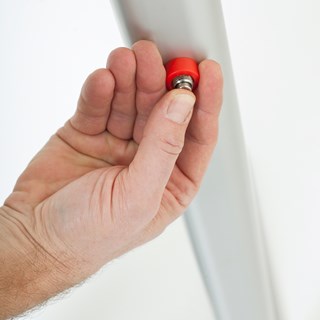

Height positions can be set at four fixed positions from 225 cm (88,6") up to 255 cm (100,4"). Adjust the height with the quick release pin.

Charging of hoist motor
Molift hoist motors can easily be charged thorough the hand control or optionally through in-rail charging.

Technical Spec.

Available rail lengths
200 - 250 - 300 - 350 cm
225-255 cm
120 cm
Maximum internal space
350 x 240 cm
Safe Working Load SWL
300 kg
Anodized aluminum, plastic
Total Weight
38-44,3 kg
Transport height
170 cm
Post, complete: 14.8 kg
Boom: 4.2 kg/m
Foot: 3.8 kg
Post, without foot: 11 kg
Molift Duo
Item no.
