Molift Partner 255

Contact Us

Description

The flagship of Molift’s mobile hoists
Molift Partner 255 provides an ideal solution for hoisting with high complexity situations in acute and critical care areas in both hospitals and care facilities. With an excellent hoisting range: 37–179 cm (14.5–70.4”) the Molift Partner 255 allows easy hoisting from the floor as well as high surfaces. The straight vertical column in combination with the fixed sling bar provides excellent stability and maintains the user at a good distance from the column. Stability, manoeuvrability and hoisting capacity With a total weight of 42.5 kg (94 lbs) Molift Partner 255 is one of the lightest in its category. Combined with excellent construction design and wheel solution it becomes very easy to manoeuvre with a safe working load of 255 kg (562 lbs).

Equipped with environmentally friendly NiMh-battery.

High safe working loadMolift Partner 255 has a safe working load of 255 kg (562 lbs).

A safe and stable position with vertical hoisting pattern
The vertical hoisting pattern keeps the user at an equidistant length from the column during the entire hoist, creating a safe and stable position.

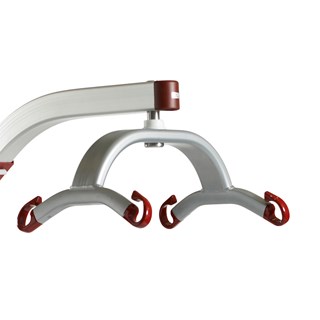

4-point sling bar
Ensures a comfortable and spacious hoisting position. Combined with the vertical hoisting pattern it creates a safe and stable transfer.

Accessories

Molift Battery Charger
The charger can be placed on the wall or on a tabletop. It provides optimal charging, and alter automatically between our different sizes of battery packs. Charges NiMH battery packs, item no 0541000 (14,4V) and 1341100 (26,4V).
Description Battery Charger
Item no. 1340100
4-point Sling bar
The ligth weight sling bar is easy for the caregiver to change and carry.
Description S, M, L
Item no. 1830012, 1830011, 1830010
8-point sling bar
Used in combination with Molift Fabric Strecher
Description Molift 8-point suspension
Item no. 2140002
Molift Stretcher MRI
A flexible and user-friendly scoop stretcher for hospitals and institutions. Apropved and compatible with X-Ray, CT-scan and MRI and works directly with Molift 4-point suspension.
Description Molift Stretcher MRI
Item no. 2150108
Weight scale arm incl. Scale excl sling bar
The Molift Partner 255 scale is placed on top of the hoisting arm, thereby maintaining the hoisting height. The scale is approved Class 3 and can also calculate BMI (Body Mass Index).
Description Weight scale arm incl. Scale excl suspension
Item no. 1331002
Molift RgoSling Fabric Stretcher
A soft fabric stretcher for horizontal and lateral hoisting. Used in combination with Molift 8-point suspension. Molift Fabric Stretcher is only applicable with Molift Partner 255.
Description M, XL
Item no. 1721520, 1721540

Technical Spec.

Weight
Regular: 42.5 kg
Low base: 45 kg
With support arms: 50 kg
Length
128.5 cm
Width chassis/legs outer
69 cm
Width open legs inner
106,5 cm
Leg height
6/11,5 cm
Battery
NiMh 26.4 V – 2.2 Ah
Battery charge time, hours
3
Hoisting height
39–168 cm
Hoisting Speed
3 cm/sek
Hoisting interval
129 cm
Rated performance
50 hoists at: 75 kg and 500 mm
Service software
Included
Maximum user weight
255 kg
Material
Aluminium, steel
Molift Partner 255
Item no.
With Support arms
13100
Standard with scale
13001
Low base with scale
13051
With Support arms and scale
13101
