Therapy tablesTest line
Test Plus Urogyn

Test Plus Urogyn
LE351__W_

Contact Us

Description

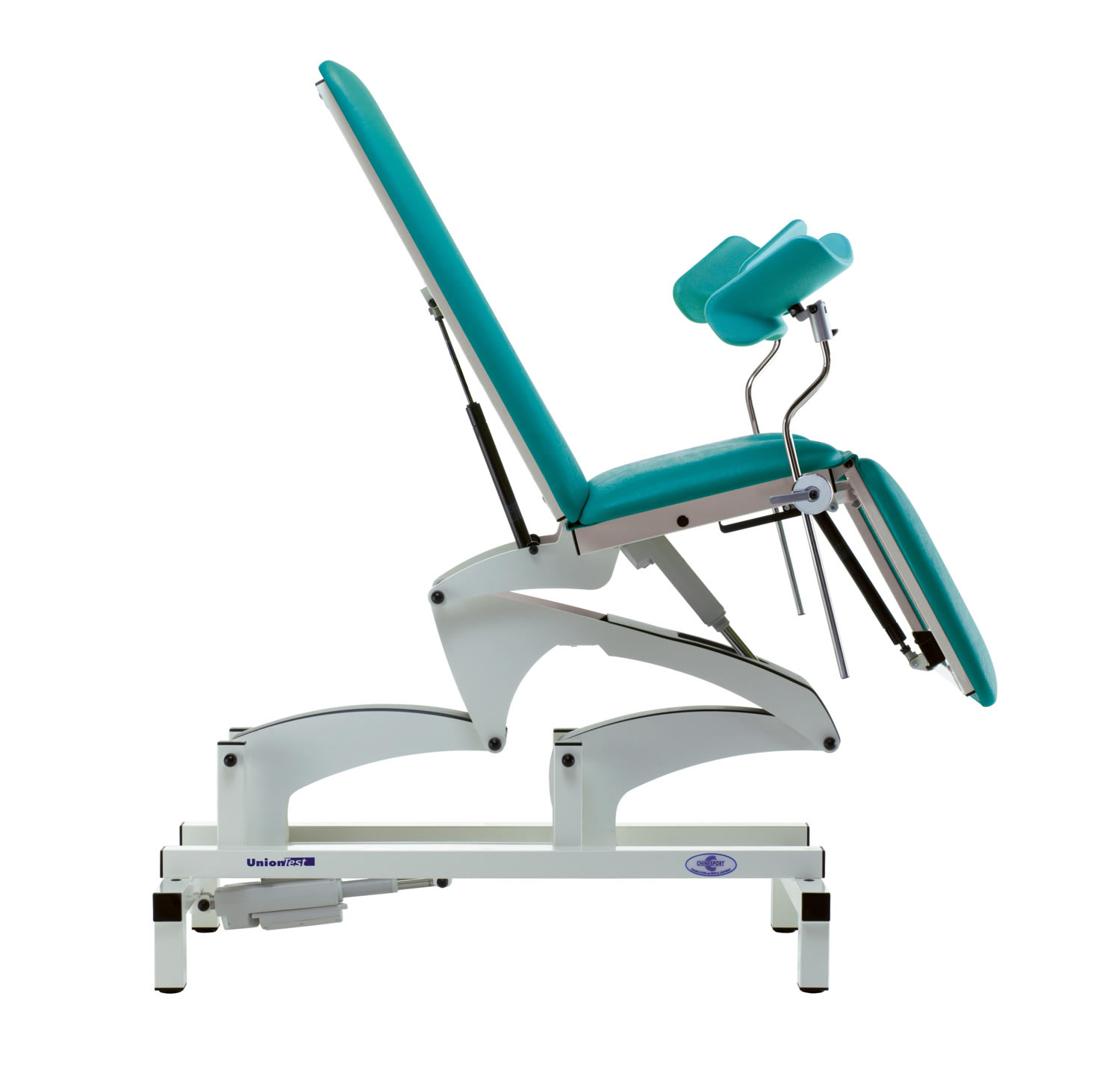

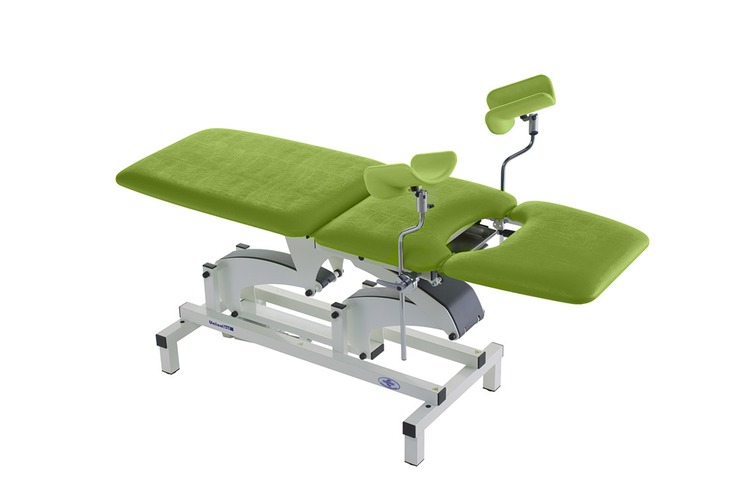

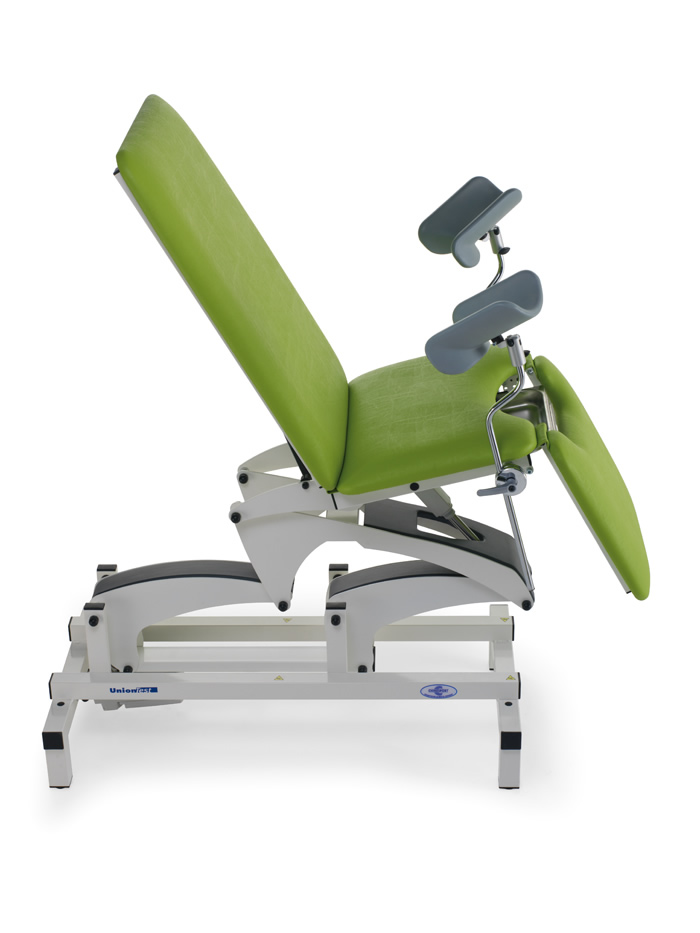

Two-motor table for diagnosis and treatment purposes, ideal for gynecology and urology procedures, electrically height adjustable by means of a low voltage (24 V) foot switch for two motors. The couch has three movable sections: the back and the leg rest can be adjusted by using a gas spring assisted system, while the seat is electrically adjustable by means of the foot switch.

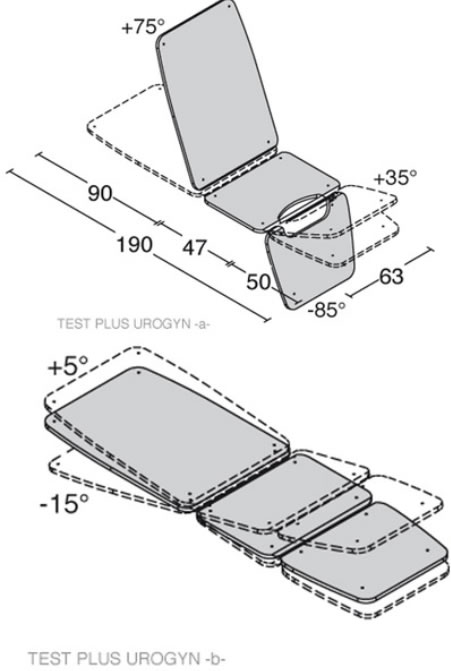

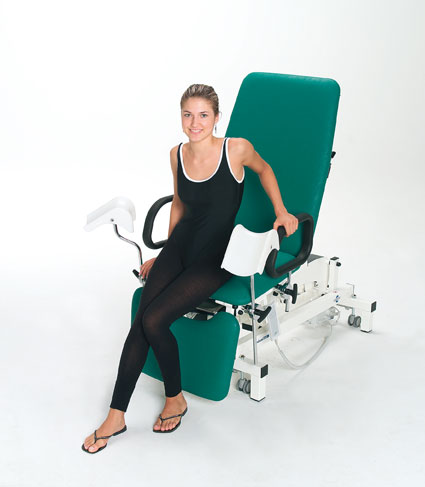

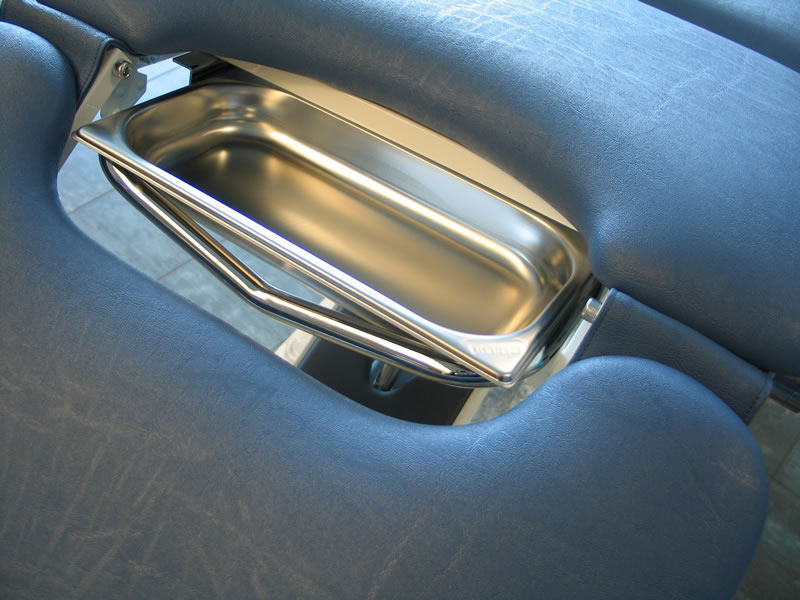

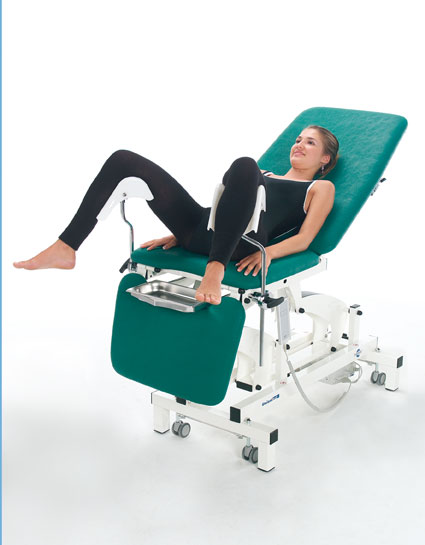

The couch can be set in "seated"-armchair style, "relaxed", "trendelenburg" and "reverse trendelenburg" positions, even with the patient on it, requiring no effort by the operator. The couch is fitted with two leg supports, which can be adjusted for height and rotation, and a removable stainless steel bowl. The couch can be further integrated with a wide range accessories.

Configurator

Height Adjustment
electric, two motors with foot switch
E
It can be used with models that have two electric actuators, one for table height adjustment and one for the seat or backrest section.
electric, two motors with hand control
F
This option has an ergonomic hand control with magnet that users can attach wherever they wish on the table frame. This is an alternative to the foot switch control for models that have two electric.
Other Options
no options
1
with wheels of transportation
2
Swiveling, non-marking wheels with a central braking system activated via a single foot pedal. Moving the table is extremely comfortable and requires no effort.
Padding Type
seamless rounded edges
W
UPHOLSTERY COLOUR
UPHOLSTERY COLOUR

Accessories

Auxiliary Battery
AC0017
Auxiliary battery enables the table to be used without power supply. The battery comes with a support so it can be secured to the frame base.
Drip Stand
AC0027
Chromed steel drip stand that is attached to models from the Visit and Test series. Must be paired with AC0313 support for Visit Series and AC0026 for Test Series.
Paper Roll Holder F
AC0031
Paper roll holder adjustable to a variety of roll widths. Recommended for use with paper rolls from set AC0034.
Standard Paper Roll Set
AC0034
The set includes 6 x 60 cm wide rolls. Each roll is 85 meters long. External diameter cm 14 , internal diameter cm 4,5.
MAXI PAPER ROLL SET
AC0035
The set includes 2 x 90 cm wide rolls. Each roll is 100 meters long.
Protective Sheet Set
AC0036
This set contains 10 synthetic fabric sheets with elasticated border. This sheet can be used on any examination and treatment table with standard size/width.
Additional Control 1
AC0083
Foot pedal or hand control, fitted with magnetic, ergonomic support.
Safety Device
AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Foot Switch Holder
AC0997
Housing for the AC0083 accessory. Can be applied on either side of the base frame as preferred by the carer. Not suitable for therapy couches equipped with perimeter foot switch option (option B).
Leg Supports
AC0324
Leg support replacement for gynecology and urology therapy tables. Sold in pairs, metal supports not included.
Additional Foot Pedal 2
AC0038
The additional foot pedal provides another way to control the table height adjustment, as well as the motorized sections.
Additional Hand Control For 2 Motor
AC0040
Additional hand control for models fitted with 2 motors. Provides the table height adjustment as well as the motorized sections adjustment. It has a magnet so it can be easily attached to the table frame.
Cervical Cushion
AC0023
Cervical cushion for a more comfortable posture.
Fastening Device
AC0026
Clamp used to configure the table/armchair with various types of armrests and other accessories (I.V. drip pole, chair loop arm, phlebotomy arm)
Armchair Armrest
AC0028
Armchair armrest made from thermoplastic material that can be easily disinfected. To be fitted with fastening device AC0026.
Phlebotomy Armrest
AC0029
Phlebotomy armrest made from thermoplastic material that can be easily disinfected. To be fitted with fastening device AC0026 or AC0850.
Padded Armrest
AC0710
Padded, synthetic leather armrest for greater comfort. When fitted into the fastening device AC0026, it can be easily adjusted in height and rotation
Plug For Urology Table
AC0545
Special plug for models code LE151 - Test Urogyn and code LE351 Test Plus Urogyn for comfortable use of the couch with the patient on and in supine posture.

Technical Spec.

Number of sections:;3;Max safety load (kg):;200;Height adjustment:;Electric;Min / max table height (cm):;65 -115;Mains supply:;220V 50-60Hz / 24V 70VA;Actuator thrust (N):;6000;IP Protection:;54;Head section adjustment:;Gas spring-assisted;Head section tilt:;+75°;Wheels diameter (mm):;65;Braking system:;Central;Upholstery safety rating:;1 IM;Padding thickness (mm):;40;Density (kg/m³):;30;Weight (kg):;92
