THERA-Trainer tigo 558 With 7" colour screen
A004-028

Contact Us

Description

The THERA-Trainer tigo enables people with individual requirements to exercise their legs or upper body with or without motorised assistance - from their chair or wheelchair. It gently encourages mobility and has a positive effect on many other aspects of health.

The all-rounder from the
THERA-Trainer Cycling line

Regular power, endurance and mobility training with THERA-Trainer tigo facilitates functional recovery and improved motor skills, and helps therapists and patients achieve their therapy goals. This movement exerciser allows effective exercise in all phases of rehabilitation.

The versatile leg and arm trainer has been developed for daily use at home or in medical facilities. It meets the latest quality and safety standards. It is particularly suitable for high-need patients thanks to its extensive software and accessories. The THERA-Trainer tigo is available in different models with additional equipment. You will be impressed by its benefits!

Basic Equipment

Base unit (Cycling)
Base unit THERA-Trainer tigo
incl. 240 Watt electric motor for leg exercising
high performance, long-lasting and extremely quiet
robust and stable all-metal frame- eco-friendly powder coating in blue
Device base unit
Device base with castors
extendible device base made of metal for expanding the base
large castors on the user side enable an adjustment of the distance between THERA-Trainer and user at every time
height of the device base incl. castors 74 mm
Foot-/ Leg securing
Foot rests with 2-stepped radius adjustment
with safety frame and velcros for securing the foot
the foot restss are easily washable and sanitizable
crank radius can be adjusted with tools to 75 mm or 110 mm
Safety handle/ Upper body exerciser
Upper body exerciser
recommended for patients with muscular diseases (amyasthenia), lack of coordination, spasticity and contractures in the upper body
for passive (motor supported) and active (own muscular power) exercising
Incl. 100 Watt leg motor
upper body exerciser can be adjusted in height and inclination
adjustable in height and distance easily without tools
Incl. holder for control and display unit with 2,7''-, 5,7''- and 10,4''-colour screen adjustable in inclination
only in combination with one of the cranks
Long crank (110 mm) for upper body exerciser
recommended for patients with weak muscles and lack of coordination in the upper body
only in combination with one of the upper body exercisers
Hand-/ Arm securing
Therapy grips
with three different ergonomic grip positions
easily washable and sanitizable
toolfree assembling to the upper body exerciser
only in combination with one of the cranks (A001-417 / A001-418)

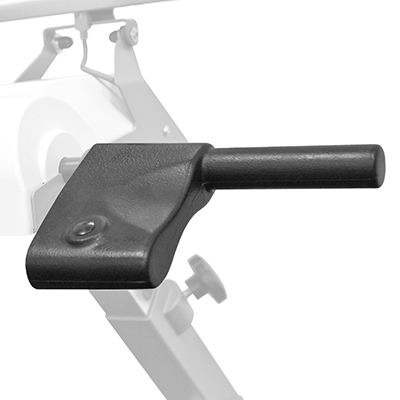

Grip adapters
if the upper body exerciser is used as a safety
handle during the leg exercise
easily washable and sanitizable
toolfree assembling to the upper body exerciser
only in combination with long cranks (A001-417)
Control and display unit / Software (Cycling)
Control- and display unit with 7" colour screen incl. touch-function
recommended for users with amblyopia or perception disorders respectively if biofeedback should be used for goal-oriented exercising
high-resolution colour screen with TFT-technology
only in combination with a safety handle (A001-415|A002-273) or an upper body exerciser (A001-416|A002-051) and the software package (A004-712)
Software package Cycling individual therapy for 7" colour screen
easy handling
many training programs
only in combination with a control and display unit with 7" colour screen (A004-652)

Possible Additional Equipment

Device base unit
Wheel set
recommended for active- and sports wheelchairs with fixed foot rests
including large castors on the rear side of the unit for flexible transporting
only in combination with one of the device bases (A003-723 / A002-750)
Tip-up protection self-operated
protects the chair/wheelchair from tilting (e. g. in case of sudden stretch spasm)
secures the correct distance between exerciser and chair/wheelchair
easy connection of the plastic-covered hooks to the chair/wheelchair
only in combination with one of the device bases (A003-723 / A002-753)
Hand-/ Arm securing
Wristbands for therapy grips / safety handle
Wristbands for therapy grips / safety handle
for the easy securing of paralysed / weak hands on the therapy grips or safety handle/grip adapter
only in combination with one of the safety handles (A001-415 / A002-273) or the grip adapters (A001-419) or the therapy grips (A001-420)
Arm rests for tetraplegia
for the ergonomic guidance of the forearms
recommended for people with strong restrictions of movement or spasticity
only in combination with arm rests with bar-shaped grips (A002-757)
Arm rests for therapy grips
for the ergonomic guidance of the forearms
arm rests with soft foamed moldings and elastic velcro straps
-very easily washable and sanitizable
can be clipped onto the therapy grips toolfree, quick and easy
only in combination with therapy grips (A001-420)
Arm rest with bar-shaped grips incl. wristbands
for the ergonomic guidance of the forearms
recommended for people with strong restrictions of movement or spasticity
only in combination with one of the cranks
Foot-/ Leg securing
Foot fixing
recommended for users that want to secure their feet on their own easily and fast in the foot rests (e. g. for spasticity, palsy,...)
fitted with soft and variably positionable cushions for securing the legs without pressure marks
cushions can be removed easily for washing and sanitation
easy handling of the foot fixing by soft pressure on the cushion (= closing) respectively on the release lever (= opening)
only in combination with one of the foot rests
Leg support
leg support for all users with paralytic symptoms in the legs
fitted with soft and variably positionable cushions for securing the legs without pressure marks
cushions can be removed easily for washing and sanitation
flexible mounted leg support enables natural movement of the ankles
cushion and joint rod of the leg support can be removed from the foot rests without tools
only in combination with one of the foot rests
Control and display unit / Software (Cycling)
Software CL group therapy basic
software with the possibility to let exercise up to 4 users at the same time

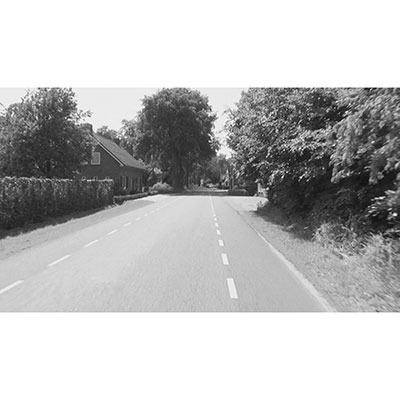

biofeedback option "cycling through landscape" incl. 20 dutch routes with sound
only in combination with one of the control and display units with 10,4" colour display mini-PC (A002-425) and an additional screen. (not included in the assortment)
Software CL group therapy advanced

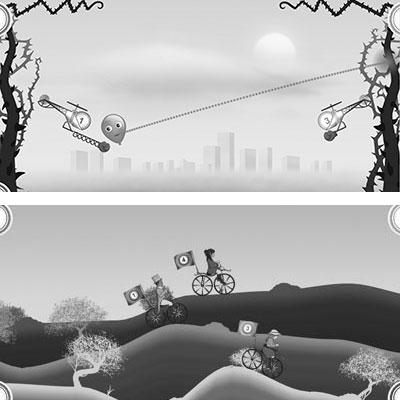

like software CL group therapy basic but with additional biofeedback options "helicopters" and "hill race"
only in combination with one of the control and display units with 10,4" colour display mini-PC and an additional screen. (not included in the assortment)
Software Upgrade CL group therapy advanced
Extension of the software CL group therapy basic (A004-246) by the biofeedback options "helicopters" and "hill race"
only in combination with software CL group therapy basic (A004-246)
Mini-PC for software package Cycling group therapy
mini-PC incl. HDMI-Connection, Keyboard and mouse- only in combination with software package Cycling group therapy

Technical Spec.

Dimensions (L/W/H)
90 / 63,8 / 106 – 116 cm
Weight
approx. 37 kg
