Tilt Table E Pro

Tilt Table E Pro
LT1E14W_

Contact Us

Description

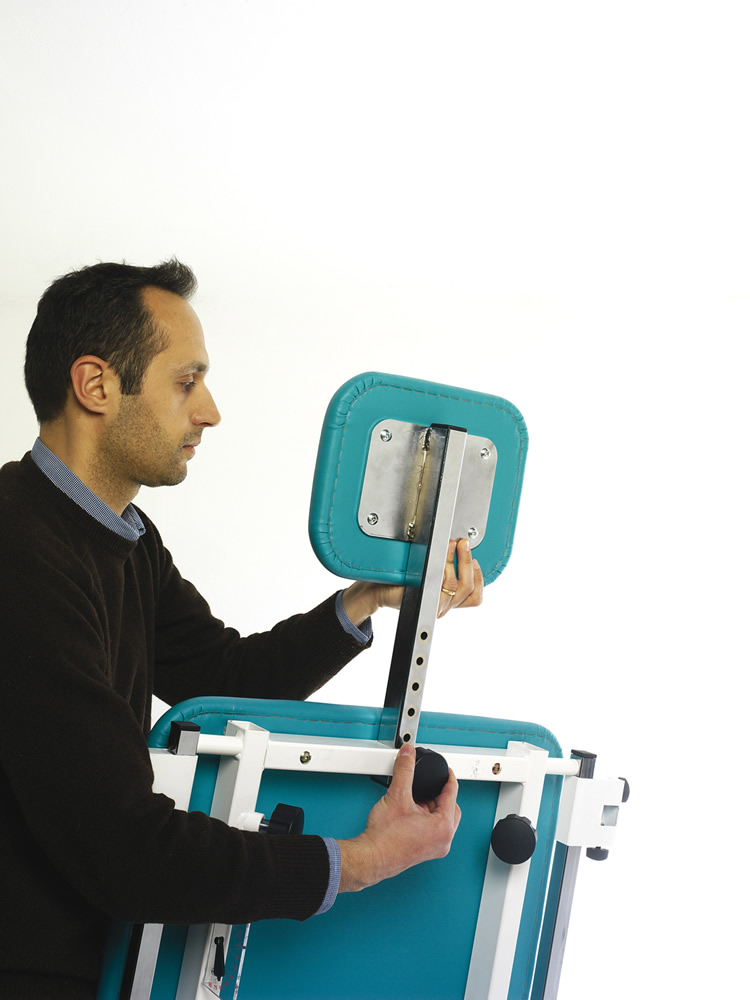

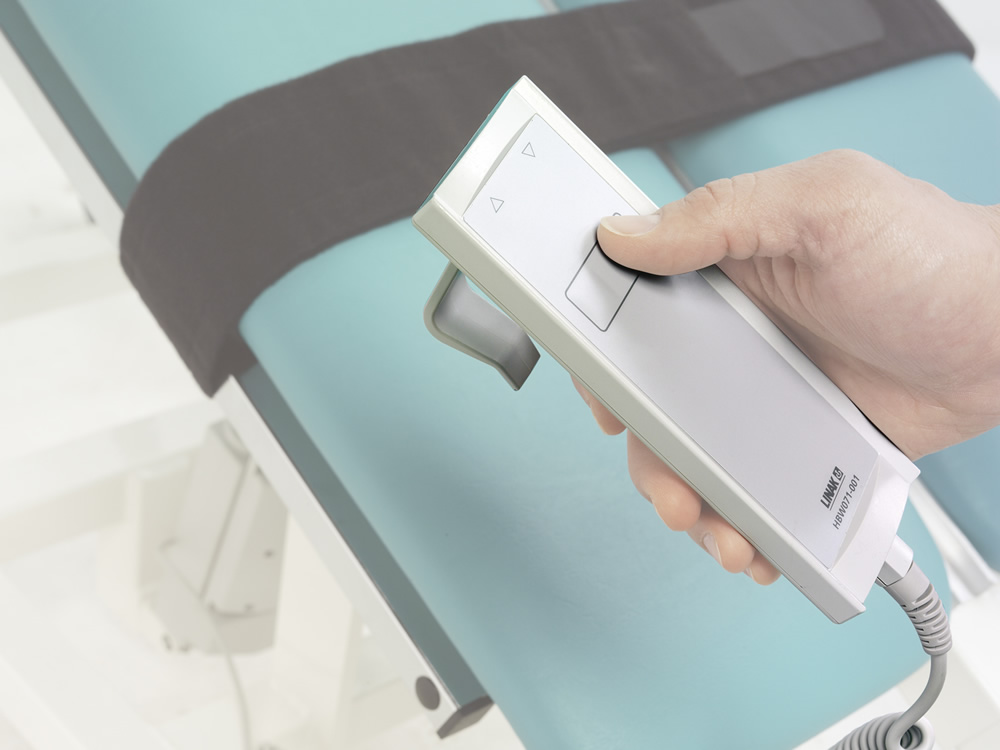

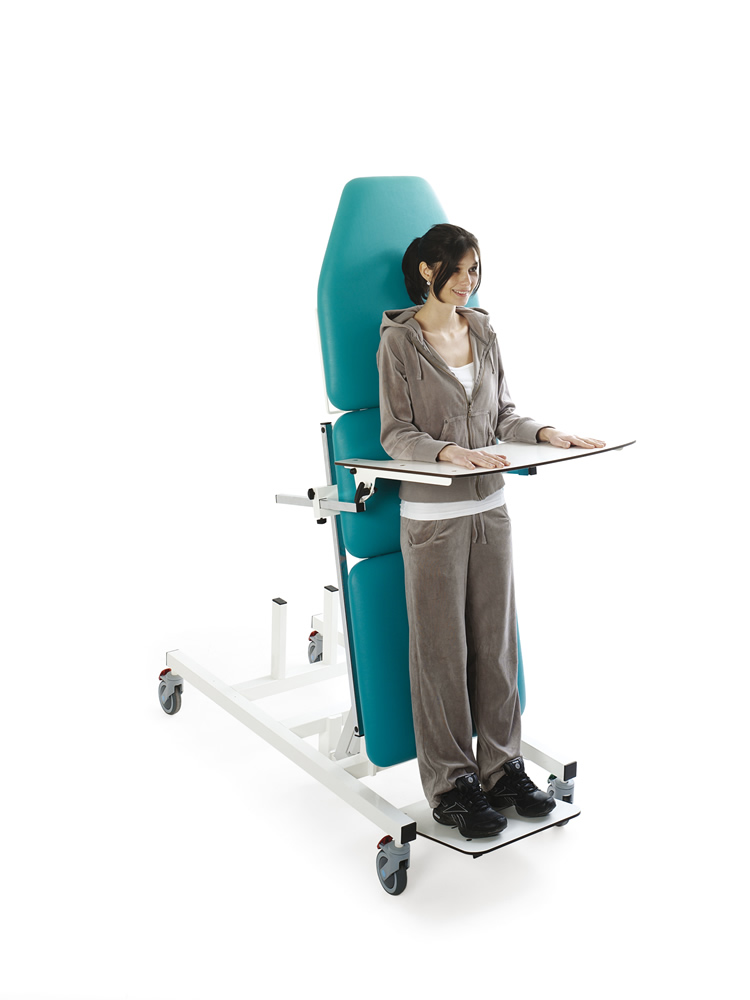

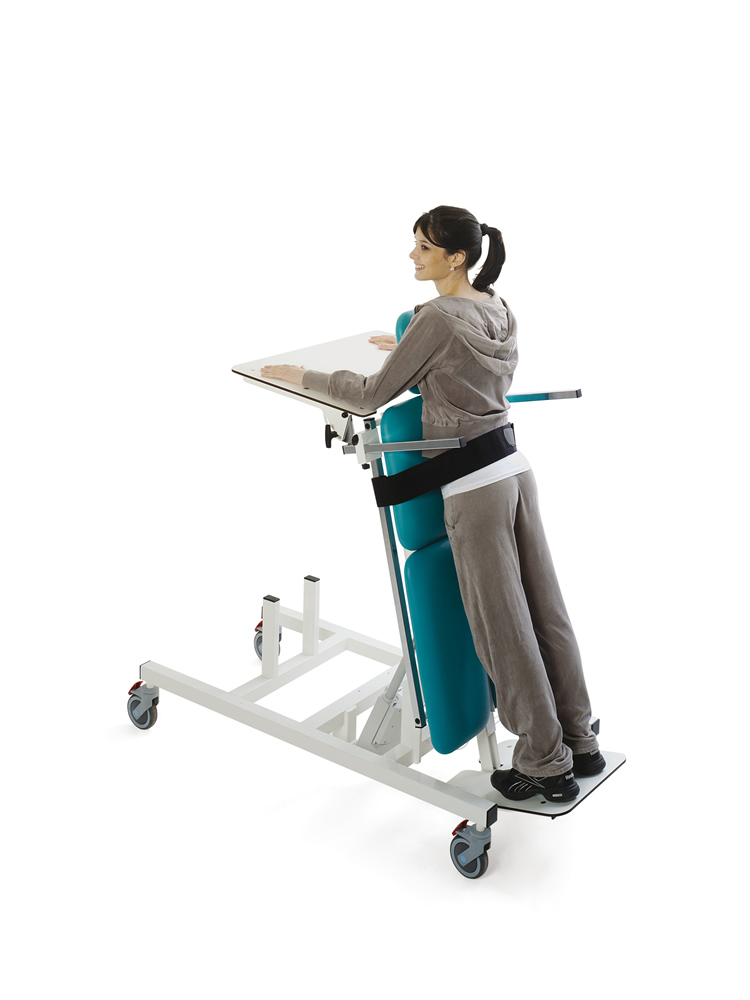

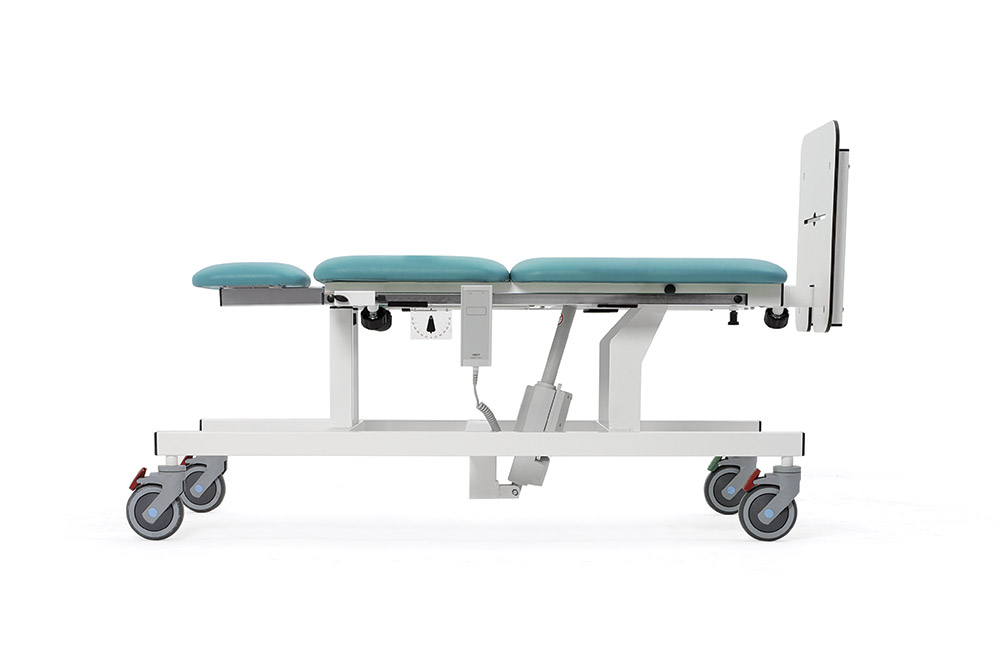

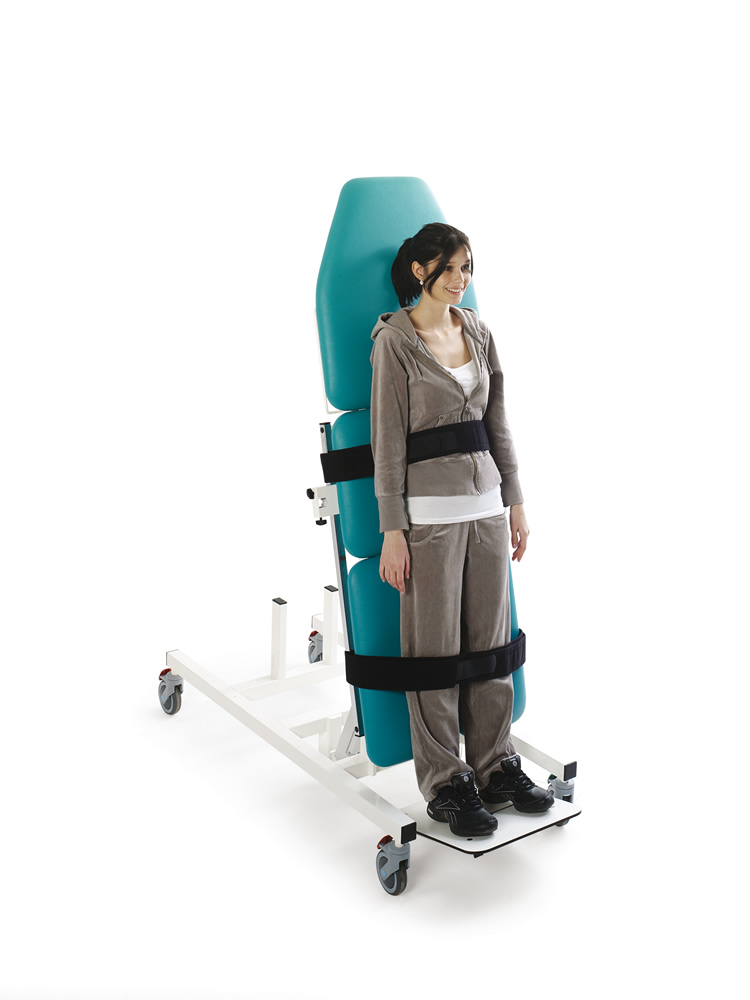

Four-section tilt table for therapy in the prone position, for up to 140 kg. Up to 90° tilt, electric version, 24V low voltage, and operated by hand control. It is fitted with tilt angle indicator; height from ground is 56 cm. The trunk support section is height-adjustable.

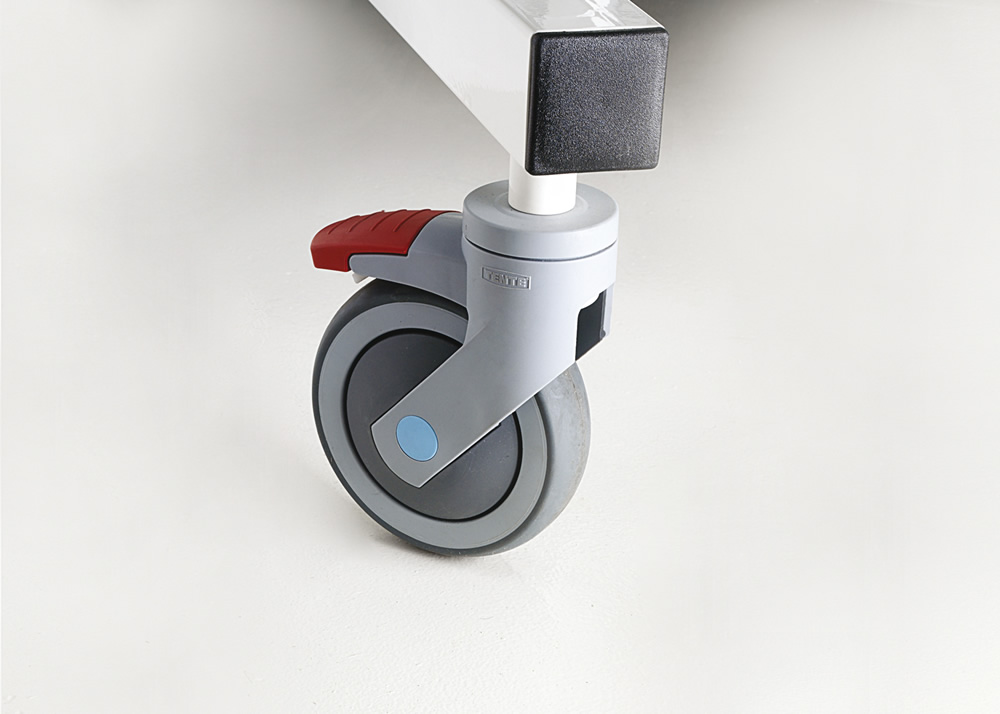

Transport is made easier by the wide diameter, braked casters, one of them being directional. A central guide between the two lower limbs support sections allows the restraint strap to be better fitted and secured by means of accessory AC0312. It is also possible to fit the leg separator accessory AC0311. When fitted with accessory AC0310, the table can also be used for therapy in the supine position.

The table does not come with any containment band, which must be chosen from among the accessories available.

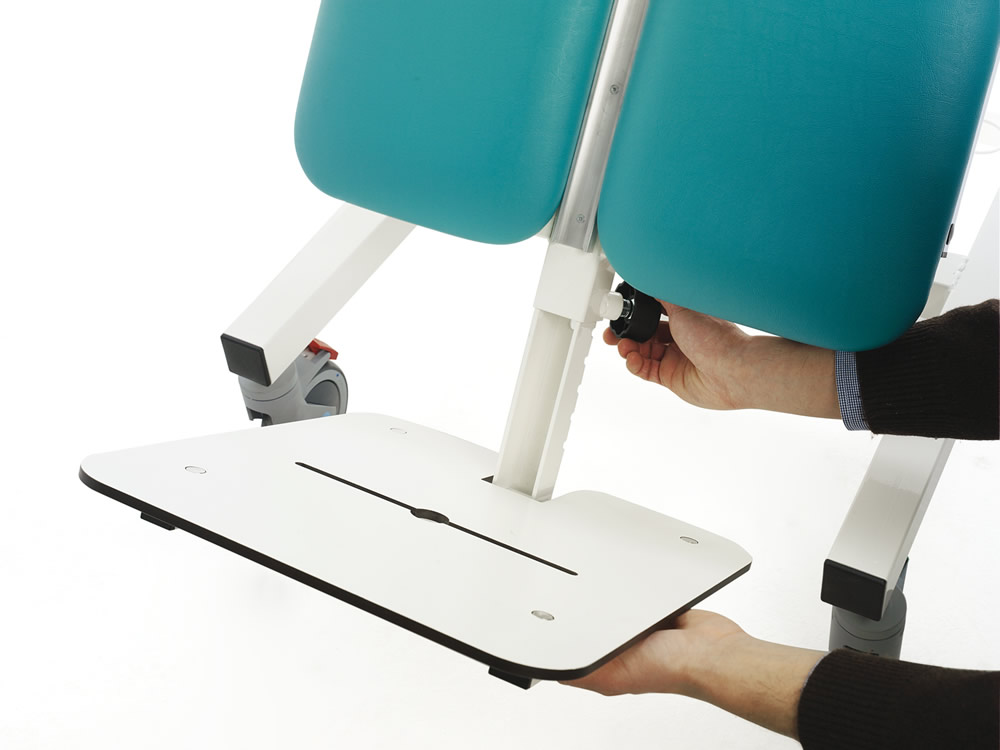

The footboard is height-adjustable.

Configurator

Padding Type
seamless rounded edges
W
COLORE
COLORE

Accessories

Additional Hand Control 1
AC0039
Additional hand control for models fitted with single motor. Provides the table height adjustment. It has a magnet so it can be easily attached to the table frame.
Additional Control 1
AC0083
Foot pedal or hand control, fitted with magnetic, ergonomic support.
Safety Device
AC0578
This device disconnects the mains supply from the height adjustment system and stops any inappropriate use when the carer is away.
Wall Battery Charger
AC0318
Professional wall-mounted battery charger. It comes with a standard SHUKO plug. By request a cable can be provided with another plug.
Intra-Extra Sandals
AC0002
Allow the foot to be adjusted for intra/extra rotation, anteroposterior, adduction and abduction and along the anteroposterior axis.
Lateral Trunk Supports
AC0003
Side supports made from soft material, adjustable in height, width and depth. (2 pieces)
Hand Grips
AC0004
Side handles to allow the patient to grip and support themselves while exercising in a static supine position. They can be adjusted in height and depth. (2 pieces).

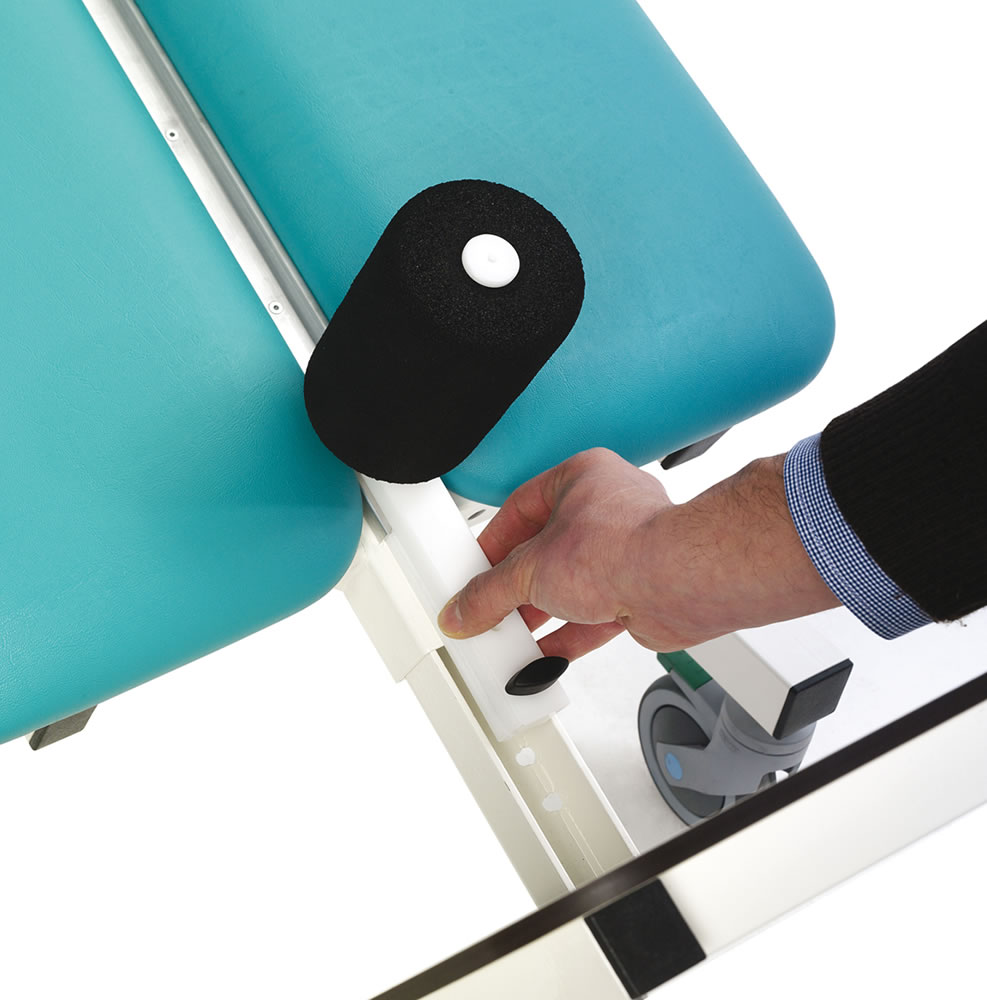

Leg Separator
AC0311
Helps keep lower limbs separated when the patient is in a static position.
Strap Guide
AC0312
Strap guide helps to safely fit the lower limbs restraining straps.
Fastening Strap
AC0005
Provides better restraint for the patient; can be fitted at the desired height by means of special guides (single piece).
Strap Cushion
AC0006
Padded cushion offering greater and more comfortable support to the patient. To be used in combination with strap code AC0005 (single piece).
Padded Leg Strap
AC0088
A broad strap with a padded support for containing both lower limbs. It has a double fixing on the side and a system that facilitates fitting by the operator.
Portable Battery Charger
AC0319
Portable battery charger with compatible SHUKO socket. By request, it can be supplied with other type of plug.
Spare Battery
01132
Additional extractable battery for a continuous use of the patient lifter.
Foot Switch Holder
AC0575
Housing for the AC0083 accessory. Can be applied on either side of the base frame as preferred by the carer. Not suitable for therapy couches equipped with perimeter foot switch option (option B).
Forearm Supports
AC0090
Forearm supports with hand grips for a comfortable hold.
Padded Supports
AC0517
Shaped side supports that offer a larger contact surface with the patient. Can be adjusted in height, width, and depth.

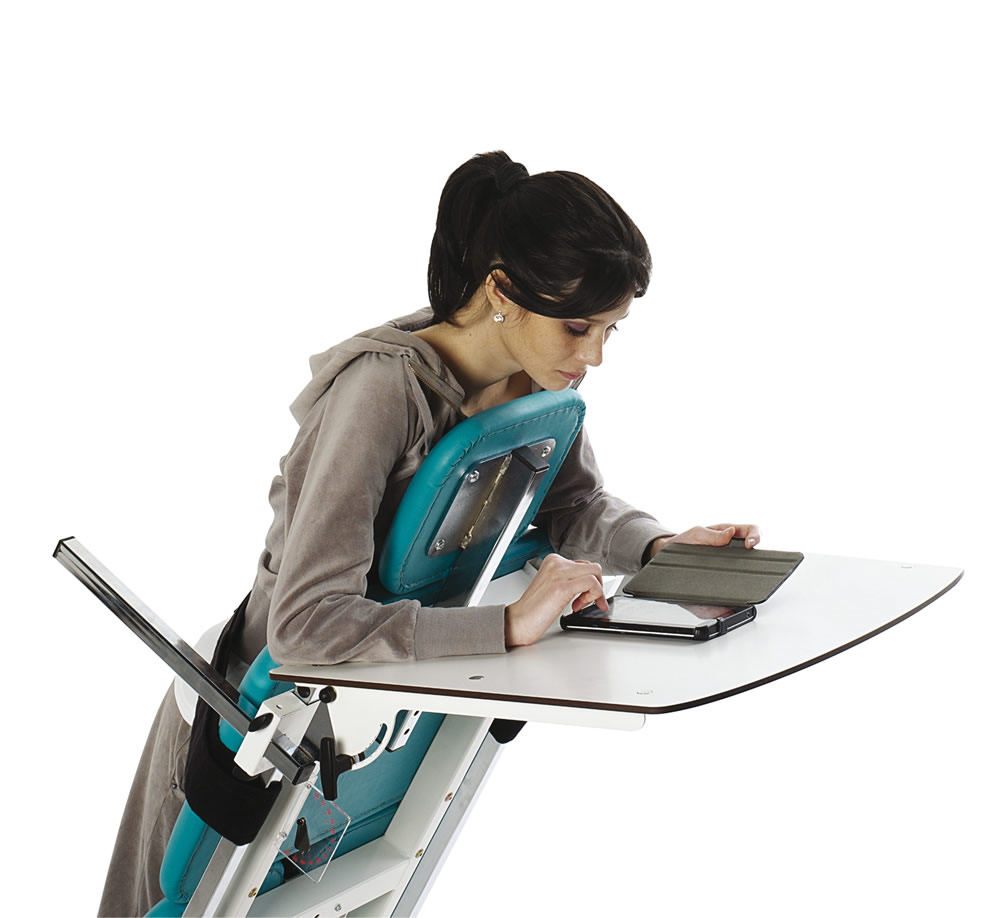

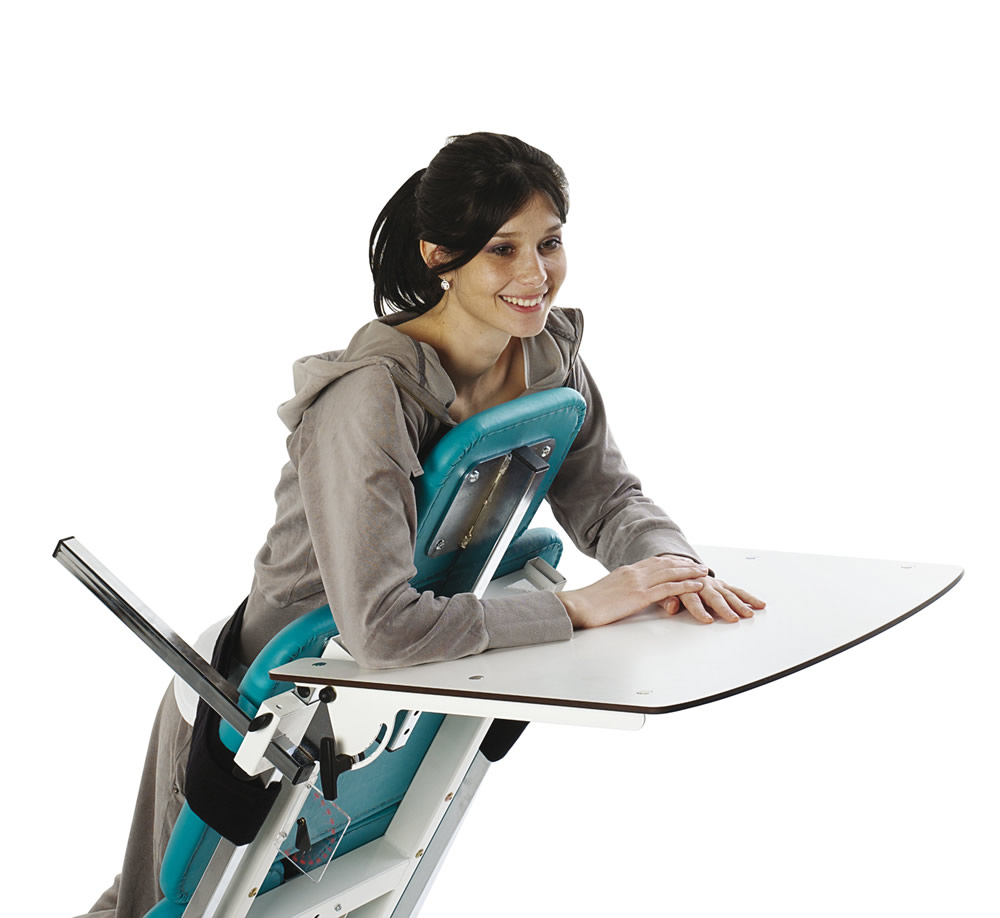

Prone Static Table
AC0309
This work table can only be used with the prone standers / tilt tables.
Supine Static Head Section
AC0310
This part can be used as an alternative when the tilt table is in supine position.

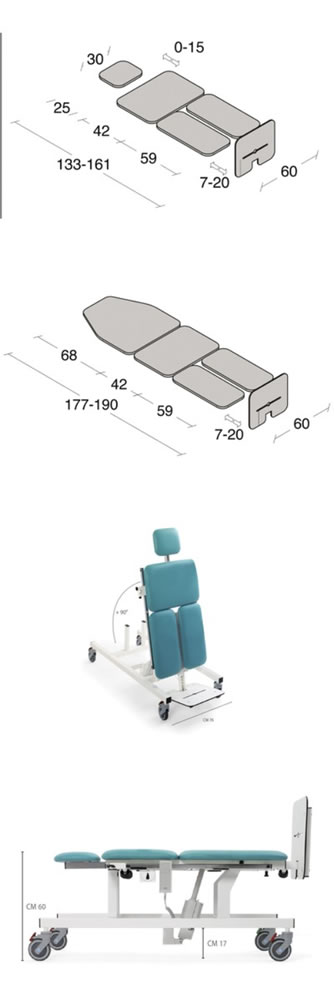

Technical Spec.

Number of sections:
4
Maximum safe working load (kg):
140
Tilt adjustment:
electrical
Power supply:
mains
Tilt indicator in degrees:
standard
Table height from the floor (cm):
56
Maximum user height (cm):
190
Caster diameter (mm):
125
Individual brake system:
on each single wheel
Steering wheel:
standard
Padding upholstery safety class:
1 IM
Padding thickness (mm) / density (kg/m3):
30 / 30
Weight (kg):
65
