x:panda
89101xx-01

Contact Us

Description

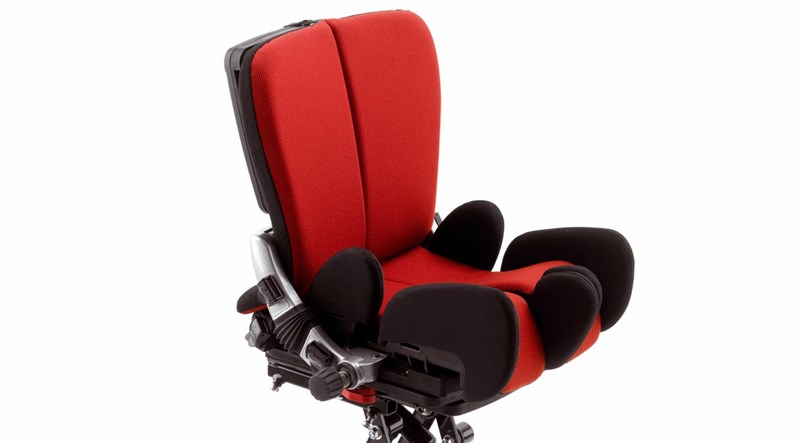

x:panda is a multi-adjustable dynamic seat, delivered in 4 different sizes - each seat with up to 4” in seat width and depth adjustment coupled with sliding back growth.

The back is dynamic, making it possible for the child to extend and push back against relatively light resistance and then regain the desired sitting position. The back is lockable which could be preferred in feeding situations and required when being used in transportation. The back can also be angled to make it possible to seat the child with either an open or closed hip angle.

The x:panda seat complies with ISO 16840-4

Available in 4 sizes each size in 3 widths

It is possible to combine the different seat and back sizes: Size 1 seat with size 2 back Size 2 seat with size 3 back Size 3 seat with size 4 back Size 2 seat with size 1 back Size 3 seat with size 2 back Size 4 seat with size 3 back

Accessories

Swing away knee supports, set
95860-xx
*In combinations with centrally mounted foot plate only. Provide control and positioning. Type Size
1+2 Small
3+4 Medium
Head supports
99xxxxx-xx
For correct position and support See the Accessories section for further information on options and measurements
Fixed side supports
8910401-x, 8910401-xP
Adjustable in height and width Type Measurements
1 W:4¼” x H:2¾”
2 W:4” x H:4”
3 W:4½” x H:5½”
4 W:6¼ ” x H:3½”
5 W:6¼ ” x H:5¾”
6 W:4½” x H:5½”
Upper Arm Supports
8910407-x0
Provides additional support and comfy closeness
1 W:5½" x H:7"
2 W:7½" x H:11½"
Overarm supports
8910407-x
To support the upper arm. The support is adjustable in height and width
Size Measurements
1 H:5¼” x W:4”
2 H:7½” x W:4¾”
Vests and belts
89113-x
For added support in a variety of possibilities See the Accessories section for further information on options and measurements
Non-dynamic gas spring
891100x
Back width extensions
8910409-45
only for size 4 One size
Cover plate
8910406-4
Only for size 4
Size Measurements
1 H:3½” x W:13½”
Tray
891072x-x
Shapes 5 and 6. See the Accessories section for further information on options and measurements
Activity center
89250
One size
Toy bar
8910740
For shapes 5 and 6 Size 1-3
Quick locks
8910702-x0
For fast and easy adjustment of the side supports See the Accessories section for further information on options and measurements
Fix lock fittings
8910260
When straps are needed above back height One size
Foam back plate
8910406-x
Fills out the gap between seat and back
Size Measurements
1 W:81/4” x H:4”
2 W:9¾” x H:4”
3 W:11¾” x H:5¾”
Armrest
891061x
Adjustable in height and angle Max height above seat
Size Measurements
1 W:3” x L:9” x H:9”
2 W:3” x L:10” x H:11”
3 W:3” x L:11¼” x H:12¾”
Double rod arm rest
8910618
For x:panda 4
Size Measurements
4 W:3” x L:14½ x H:7½”
4 W:3” x L:14½” x H:11¼”
Single rod arm rest
8910619
for x:panda 4
Size
4
4
Measurements
W:3” x L:14½” x H:11¼”
W:3”/4½xL:14½”xH:10½”
Seat wedges
8910405-x
Provide control and positioning
Size
1
1+2
1+2+3
2+3
3
Measurements
W:21/4” x L:61/4” x 1”
W:3” x L:61/4” x H:1”
W:4” x L:61/4” x: H:1”
W:4½” x L:9½” x H:1½”
W:5¾” x L:9½” x H:1½”
Seat wedges
8910405-x
Provide control and positioning Size Measurements 4 W:5” x L:11¾” x H:2” 4 W:6” x L:11¾” x H:2” 4 W:7½” x L:11¾” x H:2”
Extra padding
8910404
Hip supports
8910404-45
Only for seat size 4. Adjust the seat width for correct seating position
Size Measurements
1 H:31/4 ” x W: 7½”
Folding top
SN67-9901
One size
Fixed rod
891150x
For fixed back rest in 90° Three sizes
Back rest extension
8910655-x60
Three sizes
B:9” x H:4” x D:2”
B:11” x H:4” x D:2”
B:12¾ x H:4” x D:2”
Pommel
8910655-x60
8910408-x
Prevents the users legs from adducting

Technical Specifications

Dynamic back
The x:panda has a unique dynamic back that absorbs the energy of extension and returns the child to upright sitting without compromising pelvic positioning

Multi-adjustable
Overlap in sizing means that the starting option always offers the maximum growth potential coupled with individual leg positioning

Growth
Individual growth in width, depth and back height extend the life of the seat and accomodate the greatest range of sizes for any chair on the market

Back reclineThe point for rotation (recline of the back) is close to the axis of the hips which means that the back support maintains the correct position and minimizes shear
